Cortec VpCI® 309 is a market leading corrosion inhibitor powder that offers unbeatable corrosion protection for a wide variety of assets that contain ‘hard to reach’ areas and spaces.
VPCI 309 is a vapour phase corrosion inhibitor based VCI powder suitable for long term continuous corrosion protection of ferrous metals in ‘hard to reach’ areas, void spaces, restricted areas, cavities, and awkward inner spaces.
Cortec VPCI 309 utilises a highly effective ‘dry method’ to guard metals within an enclosed area.
The VPCI® technology essentially evaporates and is absorbed onto the metal surfaces that are exposed within the surrounding area or space. Effective when dealing with interior cavities for plant equipment, heavy machinery, etc.
VPCI 309-SF is available as a silica-free specification, available made to order.
VPCI 309 Key Features
Nitrates, Phosphates, & Silica Free
- Provides continuous corrosion protection for up to 2 years
- Thin but robust monomolecular inhibitor layer
- Vapour Phase mechanism of action is highly effective targeting hard to reach surfaces
- No need to remove powder from protected items prior to shipment
- The VPCI layer can tolerate some disruption from moisture or the opening of the enclosed space (if used with a Cortec® VPCI 126 blue bag for example). If disturbed the VPCI will replenish the protective surface layer by continuous redeposit
- Minimal surface preparation is required
- Enhanced corrosion prevention of pre-treated products and painted surfaces
- You can remove the powder coating as necessary using an air gun or water wash
- Effective protection for aluminium, carbon steel and alloy assets
- Conforms by commercial equivalent to MIL 1-22110C
- Lethal Dose (LD) 50 Oral: 2100mg/KG of body weight
Applications for 309
VPCI 309 can be used for pipes and vessels as well as other typical outdoor equipment’s like wind turbine, generator, and energy storage assets
- Effective reaching the internal surfaces of compressors, engines, tankers, boilers and heat exchangers
- Closed circuit cooling systems. Dry layup
- Asset protection following hydrostatic testing
- Various parts & components during transportation and storage through the supply chain
- Bridge cables & tendons.
How to apply VPCI 309
You can apply the 309-powder formula by wither dusting, fogging, or sprinkling. Following application, you can simply cover, close & seal the inner void space.
Fogging can be easily done using a low-pressure air hose complete with a sand blasting cup. Or a wet & dry vacuum pump (inverted) can also be used as well as conventional sand blasting machine systems.
If you require advice regarding specific dosages & equipment recommendations, please contact technical services. For most projects 0.3 – 0.5 oz per ft³ (300 – 500 grm per m³) will be sufficient.
How to Remove
When removal is required VPCI 309 & 309 SF in powder form can be removed using a low-pressure air gun or water rinse. In liquid form this does not require removal for most applications.
Compatible Metals
- Carbon Steel
- Stainless Steel
- Aluminium
- Packaging & Storage

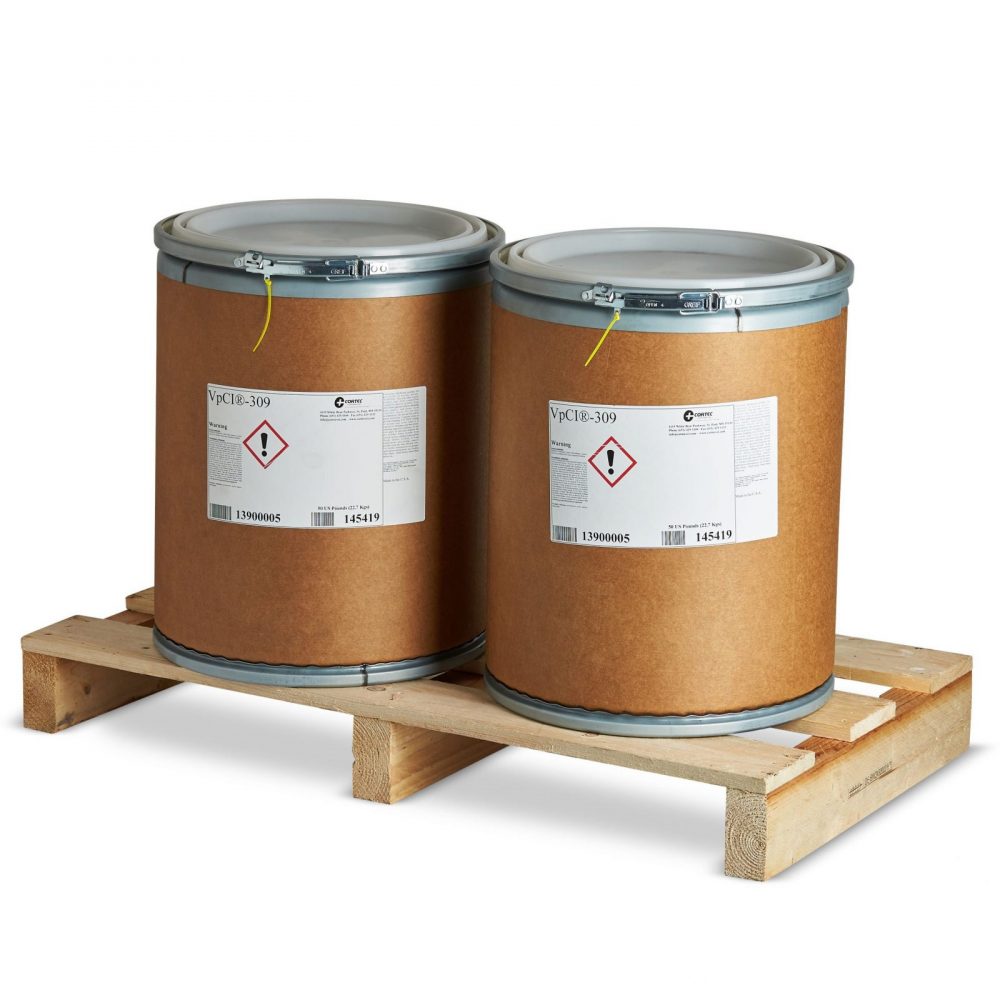

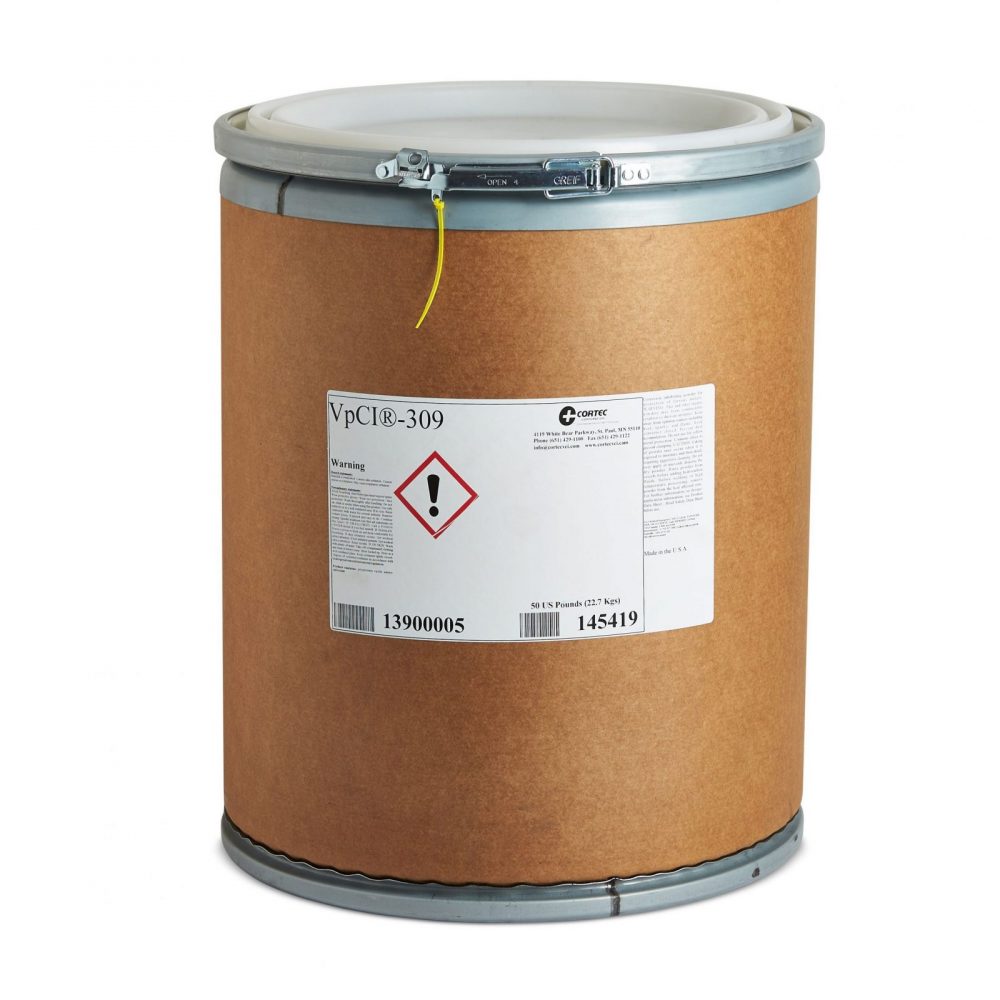

VPCI 309 can be supplied in 5-pound (2.3 KG), 50-pound (23 KG) & 100-pound (45 KG) lined drums.
When storing ensure container is properly sealed in a cool, dry warehouse space that is out of contact with direct sunlight.
Product should not be exposed to temperatures that exceed 150°F (65°C).
The shelf life for this product is 2 years.
Extra Precautions to take when using this product include :
- Powder Caking – this may occur during a wet to dry cycle, or when exposed to high heat! This state requires removal using mechanical equipment or using an industrial acid solution. To avoid this do not over apply or unevenly disperse the formula.
- Power Solubility – Powder is not soluble in hydrocarbon-based fluids. Rinse powder from any vessels prior to adding hydrocarbon fluids.
- Welding – Powder should be removed from areas before welding or other high temperature treatments.
- Silica – This formula contains Silica. It is not recommended for steam type applications (e.g. Boiler corrosion Inhibitors). Please use the VPCI 309 SF variation for Silica sensitive projects.
Product Specifications (.PDF)
Frequently Asked Questions
• What exactly is Cortec VpCI-309 and what's its primary function?
Cortec VpCI-309 is a unique Vapor phase Corrosion Inhibitor (VpCI) powder designed specifically for the dry protection of ferrous metals in enclosed, hard-to-reach spaces like cavities, voids, and recessed areas. Its primary function is to prevent corrosion by forming a protective molecular layer on all accessible metal surfaces.
• How does Cortec VpCI-309 protect metals from rust and corrosion?
This innovative powder works by subliming, meaning it transitions directly from a solid into a vapor. These VpCI molecules then travel throughout the enclosed space, adsorbing onto all exposed metal surfaces, including those hidden within cavities. This forms a monomolecular inhibiting layer that actively prevents rust and other forms of corrosion.
• Which specific types of metals does Cortec VpCI-309 protect?
Cortec VpCI-309 is specifically formulated to provide comprehensive corrosion protection for ferrous metals. This includes common materials like carbon steel, stainless steel, and various steel alloys, making it a reliable choice for a wide range of industrial applications.
• Is Cortec VpCI-309 environmentally friendly or does it contain harmful chemicals?
Cortec VpCI-309 is designed with safety and environmental responsibility in mind. It's free from silicates, phosphates, nitrites, and heavy metals, making it a more environmentally conscious choice compared to many traditional corrosion protection methods.
• How long can I expect Cortec VpCI-309 to provide corrosion protection?
When applied correctly in an enclosed space, Cortec VpCI-309 is engineered to deliver continuous corrosion protection for up to 24 months, offering long-term peace of mind for your valuable assets.
Relevant products you may want to consider:
• What are the primary methods for applying Cortec VpCI-309 powder?
Applying Cortec VpCI-309 is quite flexible; you can apply it in a dry form by dusting, fogging, or sprinkling the powder into the enclosed area. The method you choose will often depend on the size and accessibility of the space you need to protect.
• Can I easily fog Cortec VpCI-309 into complex internal structures?
Absolutely! Fogging is a highly effective way to apply Cortec VpCI-309, especially for complex internal structures. You can easily achieve this using a low-pressure air hose equipped with a sandblasting cup, or even by inverting a wet/dry vacuum, which helps distribute the VpCI vapors evenly throughout the space.
• Do I need to do extensive surface preparation before applying Cortec VpCI-309?
One of the significant advantages of Cortec VpCI-309 is that it requires little to no surface preparation. This saves valuable time and labor, allowing for quicker and more efficient application.
• What's the recommended dosage for Cortec VpCI-309 to ensure effective protection?
For optimal and continuous protection, especially in humid or contaminated atmospheres, a typical dosage recommendation for Cortec VpCI-309 is approximately 0.3-0.5 ounces per cubic foot of enclosed space (or 300-500 grams per cubic meter).
• Is it necessary to remove Cortec VpCI-309 from metal surfaces before use or shipping?
No, in most cases, it's not necessary to remove the protective VpCI layer formed by Cortec VpCI-309 before shipping or using the protected products. This means your items are ready for immediate use upon arrival, saving time and labor.
Relevant products you may want to consider:
• How can I remove Cortec VpCI-309 if it's absolutely necessary?
If removal is required, such as before welding or other high-temperature processes, Cortec VpCI-309 in its powder form can typically be removed using a low-pressure air gun or by simply rinsing with water.
• Can Cortec VpCI-309 be used for both short-term and long-term storage?
Yes, Cortec VpCI-309 is an excellent solution for both short-term and long-term storage needs, providing reliable corrosion protection for up to 24 months, making it ideal for items that may sit idle for extended periods.
• Is Cortec VpCI-309 effective for protecting the internal surfaces of pipes and tubular structures?
Definitely! Cortec VpCI-309 is particularly effective for safeguarding the internal surfaces of tubular structures, pipes, and vessels where traditional methods of corrosion protection are often difficult to apply. The vapor phase action ensures protection in these inaccessible areas.
• Can I use Cortec VpCI-309 to protect critical components like internal surfaces of compressors or turbines?
Yes, it's a perfect fit for that application. Cortec VpCI-309 is widely used to protect the internal surfaces of valuable and sensitive equipment such as compressors, turbines, engines, tanks, boilers, and heat exchangers, especially during dry lay-up or storage.
• What about protecting equipment after hydrostatic testing? Is Cortec VpCI-309 suitable?
Cortec VpCI-309 is an excellent choice for protecting equipment immediately after hydrostatic testing. It provides crucial corrosion inhibition in the remaining moisture and subsequent dry environment, preventing flash rust and long-term degradation.
Relevant products you may want to consider:
• Will Cortec VpCI-309 prevent corrosion on metal parts and assemblies during shipping?
Absolutely. Cortec VpCI-309 is ideal for protecting parts, components, and completed assemblies during shipping and transit. The dry application method and self-replenishing vapor action ensure continuous protection without messy residues.
• My enclosed space might experience temperature fluctuations. Will Cortec VpCI-309 still be effective?
Yes, the VpCI layer created by Cortec VpCI-309 is designed to self-replenish. If the VpCI layer is disturbed by factors like moisture or opening the enclosed space, the continuous vapor redeposition from the remaining powder ensures the protective layer is reformed.
• Can Cortec VpCI-309 be used to protect pre-coated or painted surfaces from further corrosion?
Yes, it can. Cortec VpCI-309 not only protects bare metal but also helps to prevent further corrosion of pre-coated and painted surfaces, adding an extra layer of protection to already finished components.
• What are the key ingredients in Cortec VpCI-309?
Cortec VpCI-309 is formulated with Vapor phase Corrosion Inhibitors that do not contain silicates, phosphates, nitrites, or heavy metals, making it a safer and more compliant option for corrosion protection.
• Is Cortec VpCI-309 considered safe for workers to handle?
When handling Cortec VpCI-309, it's always recommended to consult the Safety Data Sheet (SDS) for specific precautions. Generally, it's considered non-toxic and non-corrosive, but as with any powder, proper ventilation and personal protective equipment are advisable to avoid dust inhalation.
Relevant products you may want to consider:
• What is the typical appearance of Cortec VpCI-309 powder?
Cortec VpCI-309 typically appears as a white to off-white powder, making it easy to see during application, especially when dusting or sprinkling.
• What are the ideal storage conditions for Cortec VpCI-309 to maintain its shelf life?
To maximize its shelf life, Cortec VpCI-309 should be stored in a sealed container in a dry warehouse, away from direct sunlight, and at temperatures not exceeding 150°F (65°C).
• What is the typical shelf life of Cortec VpCI-309?
When stored correctly in its unopened packaging, Cortec VpCI-309 has a shelf life of up to 24 months, providing a good window for inventory management.
• What packaging options are available for Cortec VpCI-309 through Valdamark Direct?
Valdamark Direct typically supplies Cortec VpCI-309 in various convenient packaging sizes to suit different industrial needs, such as 5-pound (2.3 kg) pails and 50-pound (23 kg) drums, with larger quantities available on request.
Relevant products you may want to consider:
• Can I purchase Cortec VpCI-309 in smaller quantities for testing or minor applications?
Yes, the 5-pound pail is often an ideal option for smaller projects, testing, or applications where only a limited amount of the product is required.
• Where can I find the Technical Data Sheet (TDS) and Safety Data Sheet (SDS) for Cortec VpCI-309?
The Technical Data Sheet (TDS) and Safety Data Sheet (SDS) for Cortec VpCI-309 are usually available for download directly from the product page on reputable supplier websites like Valdamark Direct, ensuring you have all the necessary technical and safety information.
• How does Cortec VpCI-309 compare to traditional desiccants for moisture control?
Unlike desiccants, which primarily absorb moisture, Cortec VpCI-309 actively inhibits corrosion by forming a protective molecular layer on metal surfaces. It doesn't require regeneration and provides continuous protection even if the VpCI layer is disturbed, offering a more robust and self-sustaining solution than moisture absorption alone.
• Does Cortec VpCI-309 offer advantages over conventional oil-based rust preventatives for enclosed spaces?
Absolutely. Cortec VpCI-309 provides a dry, clean method of corrosion protection, eliminating the messy application and removal associated with oil-based rust preventatives. It protects inaccessible areas via vapor diffusion and allows for immediate use of parts without additional cleaning, offering significant time and labor savings.
• Can Cortec VpCI-309 be used in conjunction with other corrosion prevention methods?
While Cortec VpCI-309 is highly effective on its own, it can often complement other corrosion prevention strategies. However, it's always best to consult with a corrosion expert or the manufacturer's guidelines when combining different protection methods to ensure compatibility and optimal performance.
• What are the long-term cost benefits of using Cortec VpCI-309 in industrial maintenance?
Implementing Cortec VpCI-309 into an industrial maintenance routine offers significant long-term cost benefits by extending the lifespan of machinery and components, reducing the need for costly rework or replacement of corroded parts, minimizing downtime for cleaning and re-application of protectives, and contributing to a safer work environment by replacing hazardous chemicals.
