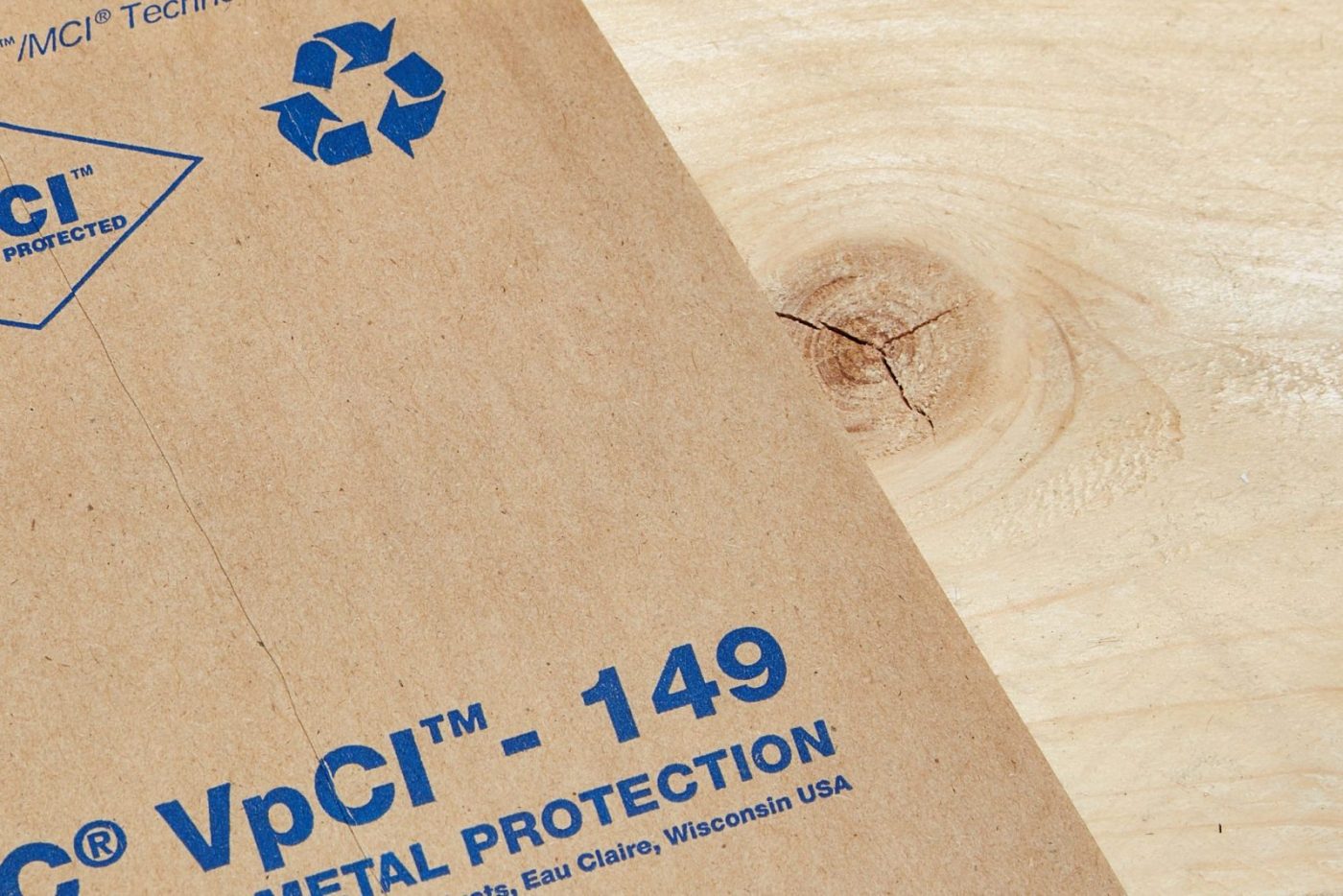

Cortec VpCI® 149 Vapor Corrosion Inhibitor Paper
Cortec VpCI® 149 Vapor Corrosion Inhibitor Paper
Stock TBD
Couldn't load pickup availability
- International Delivery
- Bulk Buying Discounts
- Best-in-Class Products
Cortec VpCI®149 is a market leading Vapor Corrosion Inhibitor Paper designed to give enhanced protection to a variety of metals when being transported or stored.
Vapor Corrosion Inhibitor Paper products from Cortec are unique in their ability to provide ‘best in class’ corrosion protection for a wide variety of metals.
VPCI 149 has been specifically formulated to give enhanced protection to sensitive metals such as copper, aluminium and cast iron.
VPCI 149® has a diverse range of applications and can be used as an effective solution for a variety of packaging needs. The paper itself has a unique feel, as it uses a neutral & natural kraft paper the coating is such that whilst the paper has a ‘soft’ feel it wraps very easily around metal parts. This makes VPCI 149 extremely easy to use.
Furthermore, as this construction does not use saturated paper like cheaper alternatives it maintains a remarkably high tear resistance.
This specification utilises the renowned vapour phase corrosion inhibitor technology that results in a far superior level of protection to legacy VCI Paper alternatives.
These VPCI corrosion inhibitor molecules provide strong vapour phase protection that makes this an effective solution for protecting void & cavity spaces as well as being good at interleaving.
VPCI 149 paper is made from the highest quality neutral and natural Kraft paper. Both chlorine and bleach free there is no risk of the usual ‘contamination culprits’ found with other VCI paper roll products.
There are no additional chemical concentrations that need to be calculated with VPCI 149. Simply wrap your products in the paper and fold the edges together.
Consider using adhesive tape (or even a heat sealer) to position and seal the Vapor Corrosion Inhibitor Paper in place.
The VPCI inhibitor molecules then evaporate onto the surrounding metal surfaces to offer complete corrosion protection.
Usual Applications
VPCI 149 vapour corrosion inhibitor paper can be used for asset protection of sensitive metal goods during transport and storage.
Mostly this paper is used as a Kraft wrap for single item packaging or interleaving, it’s equally as common to use 149 for end closure and shipping tubes as well as larger items that require sheet liners or separation between individual products.
- Metal production. Coils, plates, wire reel & bar products
- Metal fabrications and die casting. Raw & machines forgings or castings
- General metal work and stamping. Springs, tubes, pipes, nails, bearings, and fastenings
- Finished metal products. Engines, industrial equipment, tooling, appliances, instrumentation, motors, electronics, and control pieces.
Key Features
- One single product for all metals, both ferrous and non-ferrous
- Non-toxic
- 100% both recyclable and repulpable
- Full conformance with MIL P 3420 E.
- No need to remove the protective layer before finishing or coating
- Works well with oiled metals being transported or stored throughout the supply chain.
- Combine rust protection and packaging in one easy process
How to apply
- Package products as soon after cleaning as is possible
- Keep dried and free of residual water
- Keep the vapour corrosion inhibitor paper as close to the surface of the product as is practical
- Ensure there is no obstruction or barrier between the VPCI paper and the surface to be protected
- We recommend you use 1 sq ft (0.09m²) of VPCI paper for each 3 sq ft (0.28 m²) of surface area to be protected
- For void spaces and cavities consider using 1 sq ft (0.09m²) of VPCI paper for every 0.5 ft cube of voided spaces.
- If storing into the long term for up to 10 years, consider using in conjunction with one of our barrier foil bags, hermetically (airtight) sealed. For optimal seal quality consider one of our WSZ machines.
What metals does VPCI 149 protect?
- Steel (Stainless)
- Brass
- Aluminium Alloy
- Iron
- Steel (Galvanised)
- Copper
- Steel (Carbon)
- Solder
Packaging & Storage
VPCI 149 Vapor Corrosion Inhibitor Paper is available in a variety of custom sizes available upon request.
As standard it is available in 37 lbs (16.8 kg) rolls & 60 lbs (27.2 kg) /3000sq. ft.
(279 sq. m.) paper.
Product Specifications (.PDF)
Frequently Asked Questions
• What exactly is Valdamark Direct VCI Paper and how does it work to prevent rust?
Valdamark Direct VCI Paper is a specially treated kraft paper that has been infused with a unique blend of Vapor Corrosion Inhibitors. When you use it to wrap or interleave metal items, these VCI molecules actually vaporise and create an invisible, protective atmosphere around the metal surface. This molecular layer then acts as a barrier, preventing oxygen, moisture, and other corrosive elements from reacting with the metal and causing rust or corrosion. It’s like creating a microscopic shield for your valuable parts!
• Is VCI paper a "one-size-fits-all" solution for all metals, or are there different types for specific materials?
Valdamark Direct offers VCI paper designed for a wide range of metals. While many of our VCI papers are formulated to protect both ferrous (like iron and steel) and non-ferrous metals (such as aluminium, copper, and brass), we also have specialised options if you're dealing with particular alloys or need extra specific protection. It’s always worth checking the product details to ensure the best compatibility for your project.
• What's the main difference between Valdamark Direct VCI Paper and traditional rust prevention methods like oils or greases?
The biggest difference is how clean and easy VCI paper is to use. Unlike messy oils and greases, which require application and then often a thorough cleaning before use, Valdamark Direct VCI Paper leaves no residue. Your metal parts come out of the packaging dry and ready for immediate assembly or use, saving you significant time and labour.
• Can Valdamark Direct VCI Paper provide protection for items that are stored long-term, or is it more for short-term transit?
Valdamark Direct VCI Paper is designed for both! It offers excellent protection during transit, safeguarding your components against the elements encountered during shipping. Crucially, it also provides robust, long-term corrosion protection for items in storage, often lasting for years when properly applied in a sealed environment.
• Is the VCI protective layer visible on the metal surface once the paper is removed?
No, not at all! The VCI molecules form a monomolecular layer on the metal surface, meaning it's incredibly thin and completely invisible to the naked eye. Your parts will look exactly as they did before being packaged, with no discolouration or residue.
Relevant products you may want to consider:
• Does Valdamark Direct VCI Paper have any smell or odour that could be undesirable for certain applications?
Generally, Valdamark Direct VCI Paper has a very minimal, if any, discernible odour. It's designed to be clean and unobtrusive, making it suitable for a wide array of applications where strong smells would be an issue.
• What's the best way to wrap smaller metal components with Valdamark Direct VCI Paper for optimal protection?
For smaller components, the key is to ensure the VCI paper is as close to the metal surface as possible and that the package is sealed well. You can simply wrap the item like a present, making sure there's an overlap to create an enclosed VCI atmosphere. Using adhesive tape to secure the folds will help maintain this protective environment.
• How should I use Valdamark Direct VCI Paper as an interleaving material for stacked metal parts?
When stacking multiple metal parts, place a sheet of Valdamark Direct VCI Paper between each layer. This ensures that the VCI molecules can effectively reach all surfaces, even those in direct contact with other parts, providing uniform corrosion protection throughout the stack.
• Is it important to clean metal parts before wrapping them in Valdamark Direct VCI Paper?
Yes, for the best results, it's highly recommended to ensure your metal parts are clean and dry before packaging them with Valdamark Direct VCI Paper. Any existing contaminants like dirt, grease, or rust could hinder the VCI molecules from effectively forming their protective layer.
• How close does the Valdamark Direct VCI Paper need to be to the metal surface for it to work effectively?
To achieve maximum efficiency, the metal product should ideally be no more than 300mm (approximately 12 inches) away from the VCI paper. The closer the paper is to the metal surface, the more concentrated and effective the VCI atmosphere will be.
Relevant products you may want to consider:
• Can I use Valdamark Direct VCI Paper inside a sealed container, like a box or crate, for added protection?
Absolutely! In fact, using Valdamark Direct VCI Paper within a sealed container, such as a corrugated box or wooden crate, is highly recommended. This creates an enclosed space that helps to concentrate the VCI vapour, significantly enhancing the protection for your metal components.
• Are there any special handling precautions I should take when using Valdamark Direct VCI Paper?
It's always a good idea to handle VCI paper with clean, dry hands to prevent any contamination. While the product is generally safe to use, maintaining cleanliness ensures its optimal performance.
• What if I need to temporarily open a VCI-protected package for inspection? Does it compromise the protection?
Good news! Valdamark Direct VCI packaging is quite forgiving. You can generally open and reseal packages for brief inspections without significantly compromising the corrosion protection, as the VCI atmosphere will regenerate once the package is sealed again. Just try to minimise the time it's open.
• Can Valdamark Direct VCI Paper be used with other VCI products, like VCI films or emitters, for enhanced protection?
Yes, definitely! For highly critical applications, very large enclosures, or extended protection periods, combining Valdamark Direct VCI Paper with other VCI products like VCI films, bags, or diffusers can create a more comprehensive and robust corrosion-inhibiting environment.
• What kinds of industries commonly benefit from using Valdamark Direct VCI Paper?
Many industries rely on Valdamark Direct VCI Paper, including automotive, aerospace, heavy machinery, military, electronics, and general manufacturing. Essentially, any industry that deals with the storage, shipping, or export of metal components can significantly benefit.
Relevant products you may want to consider:
• Is Valdamark Direct VCI Paper suitable for protecting delicate or precision-machined parts?
Yes, it's ideal for delicate and precision-machined parts. Since it leaves no residue, there's no need for cleaning after unpacking, which is crucial for sensitive components where even minor contamination could cause issues.
• Can Valdamark Direct VCI Paper be used for international shipping, including sea freight, where humidity is a major concern?
Absolutely. Valdamark Direct VCI Paper is specifically designed to provide robust protection in aggressive environments, including high humidity conditions often encountered during international sea freight, ensuring your products arrive rust-free.
• Beyond individual parts, can Valdamark Direct VCI Paper protect larger machinery or equipment during storage?
Yes, VCI paper can be effectively used to protect larger machinery. It can be draped over equipment, or used to line crates and enclosures, forming a protective atmosphere within the contained space to guard against corrosion during storage.
• Does Valdamark Direct VCI Paper offer protection in environments with airborne pollutants or chemicals?
Yes, Valdamark Direct VCI Paper is highly effective in environments containing humidity or aggressive chemicals like sulphur dioxide or hydrogen sulphide, actively neutralising their corrosive effects and protecting the metal.
• Is Valdamark Direct VCI Paper used for work-in-progress protection within manufacturing facilities?
Yes, VCI paper is an excellent solution for protecting metal components during various stages of manufacturing, ensuring they remain rust-free between processes, storage, and final assembly, minimising costly rework.
Relevant products you may want to consider:
• What makes Valdamark Direct VCI Paper a cost-effective choice for corrosion protection?
It's cost-effective because it eliminates the need for expensive and time-consuming degreasing or cleaning processes associated with traditional rust preventatives. By preventing corrosion in the first place, it also reduces potential rework, scrap, and warranty claims, saving you money in the long run.
• Does Valdamark Direct VCI Paper meet any specific industry standards or certifications?
Valdamark Direct VCI Paper products often meet various industry standards, such as MIL-PRF-3420 (a US Department of Defense standard), RoHS compliance, and TRGS 615, indicating their quality and suitability for demanding applications. Specific product details will confirm the exact certifications.
• Is Valdamark Direct VCI Paper available in different sizes or formats to suit various packaging needs?
Yes, Valdamark Direct VCI Paper is available in a variety of sizes and formats, including sheets and rolls, allowing you to choose the most suitable option for your specific packaging requirements, whether you're wrapping small parts or lining large crates.
• Can Valdamark Direct VCI Paper be customised, for instance, with a poly coating for added moisture resistance?
Indeed! Some Valdamark Direct VCI Paper variants come with a polyethylene (poly) coating, which provides an additional barrier against moisture and enhances the paper's tear resistance, offering even greater protection in challenging environments.
• Does the colour variation in Valdamark Direct VCI Paper rolls affect its performance?
No, any shade variations in the colour of Valdamark Direct VCI Papers are inherent to the manufacturing process and do not impact the length, quality, or effectiveness of the corrosion protection. The chemistry remains consistent.
Relevant products you may want to consider:
• Is Valdamark Direct VCI Paper considered an environmentally friendly packaging solution?
Yes, many Valdamark Direct VCI Paper products are designed with environmental responsibility in mind. They are often recyclable and repulpable, and formulations are increasingly free from hazardous substances like nitrites, contributing to a more sustainable packaging approach.
• What is the recommended storage condition for Valdamark Direct VCI Paper before it's used?
For optimal shelf life and performance, Valdamark Direct VCI Paper should be stored in its original packaging, away from direct sunlight, in a cool, dry place. Keeping it sealed until ready for use helps maintain its effectiveness.
• How long is the typical shelf life of Valdamark Direct VCI Paper if stored correctly?
When stored correctly in original airtight packaging, away from direct sunlight and in cool, dry conditions (typically below 30°C and 50% RH), Valdamark Direct VCI Paper often has a shelf life of up to three years.
• Can Valdamark Direct VCI Paper be disposed of with regular paper waste, or does it require special disposal methods?
Since many Valdamark Direct VCI Papers are recyclable and repulpable, they can often be treated as normal paper waste, making disposal straightforward and environmentally sound, although it's always wise to check local recycling guidelines.
• If I have leftover VCI paper after a project, how should I store it to ensure it remains effective for future use?
To preserve any unused Valdamark Direct VCI Paper, simply roll it back up or fold it neatly and store it in its original packaging, or an airtight container, in a cool, dry place, out of direct sunlight. This will help maintain its active VCI properties for future projects.
