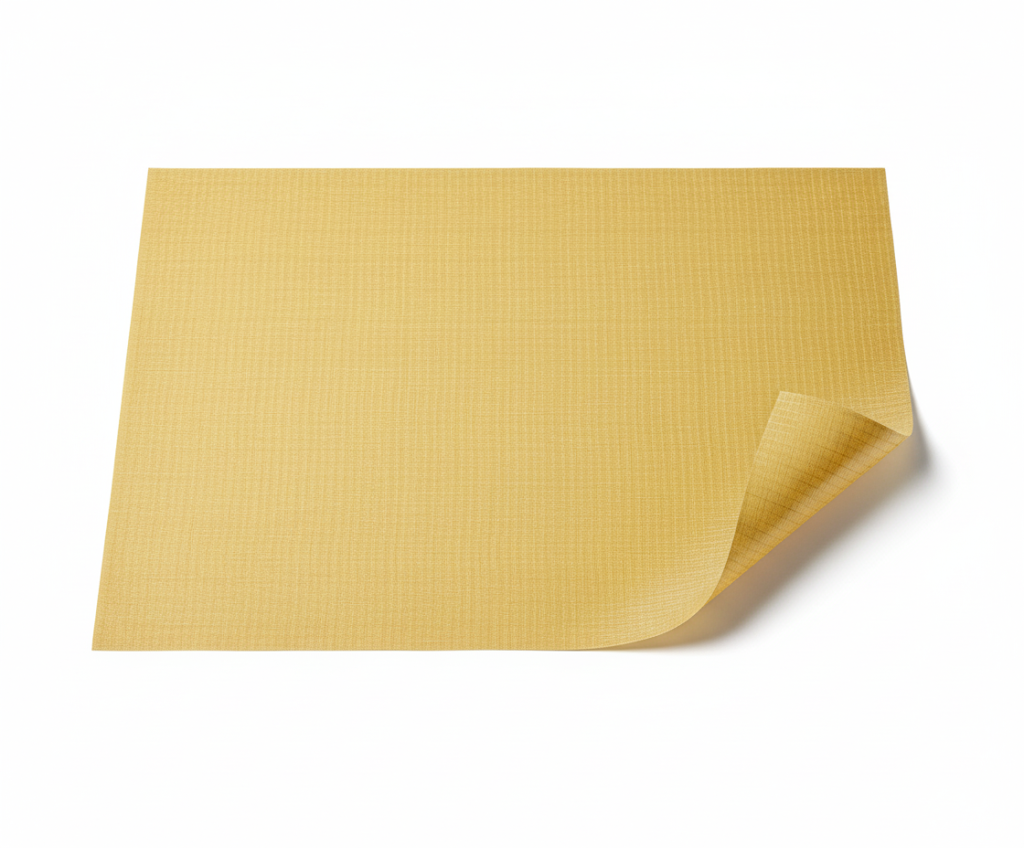

Versil-Pak 5-2 is a flexible, greaseproof, and waterproof barrier material designed for exceptional protection in highly corrosive environments.
It's constructed from a high-strength polyester fabric, waxed on both sides, laminated to a barrier film, and then wax-coated. This robust design provides excellent barrier properties, while the fabric enhances strength and simplifies handling.
This material excels at conforming to various shapes and sizes, including intricate industrial surfaces like welds, threads, straps, yokes, joints, and valves. It acts as a formidable barrier against contaminants such as soil, grease, and dust , offering significant corrosion, abrasion, and impact protection. The two-sided adhesion wax ensures a tight, secure overlap seal. Versil-Pak 5-2 is safe and easy to use, requiring no special handling. It also features OEM-approved VCI chemistry and is RoHS compliant.
Typical applications include protecting industrial plant piping where corrosive conditions are prevalent, such as air lines, sprinkling system piping, cold water pipes, and gas pipes. It's also ideal for tight wraps on underground piping, pumps, irregular shapes on oil field machinery, large electric motors, and buried equipment requiring strong barrier and dielectric protection. Versil-Pak 5-2 is qualified to U.S. Department of Defense MIL-PRF-121, Type 1, Grade C, Class 2.
Specifications:
- Weight: 0.55 (g/m²)
- Caliper (thickness): 14.5 (µm)
- Mullen Burst Strength: 101 psi (206 kPa)
-
Elmendorf Tear Strength (g/ply (N/ply)):
- Cross Direction: >1600 (11.8)
-
Tensile Strength (lb/in (kN/m)):
- Machine Direction: 28.5 (1.75)
- Cross Direction: 22.5 (0.87)
- Standard Roll Sizes: 36" x 50 yds. and 36" x 100 yds. (Other roll sizes are available upon request)
- Approvals: RoHS, OEM Approved, MIL-PRF-121, Type 1, Grade C, Class 2
- Storage: Store in a cool, dry place, away from direct sunlight. Do not store outdoors, in high humidity, or at 80°F (27°C).
- Shelf Life: 5 years from date of shipping, when stored in the original shipping container used by Daubert Cromwell, not in high humidity, not at high temperatures, or stored outside.
Product Specifications (.PDF)
Frequently Asked Questions
• What exactly is Versil-Pak 5-2 and what makes it unique as a barrier material?
Versil-Pak 5-2 is a flexible, greaseproof, and waterproof barrier material specifically engineered by Daubert Cromwell. Its unique composition includes a polyester high-strength fabric core, waxed on two sides, laminated to a barrier film, and then wax-coated, which collectively provides exceptional strength and barrier properties.
• How does the construction of Versil-Pak 5-2 contribute to its protective qualities?
The construction of Versil-Pak 5-2 is designed for robust protection; the polyester high-strength fabric core not only provides significant strength but also acts as a carrier for the protective wax, while the polyester film enhances the barrier properties even further.
• Is Versil-Pak 5-2 suitable for highly corrosive environments?
Absolutely, Versil-Pak 5-2 is particularly well-suited for protecting buried piping and similar highly corrosive environments and applications.
• What specific types of protection does Versil-Pak 5-2 offer?
Versil-Pak 5-2 provides comprehensive corrosion, abrasion, and impact protection, all while being greaseproof and waterproof.
• What role does the polyester high-strength fabric play in Versil-Pak 5-2?
The polyester high-strength fabric core in Versil-Pak 5-2 is crucial as it provides high tensile strength, good moldability, excellent dead-fold characteristics, and high dielectric strength.
Relevant products you may want to consider:
• How does the two-sided high adhesion wax enhance the product's performance?
The two-sided high adhesion wax on Versil-Pak 5-2 ensures an excellent barrier and creates a tight overlap seal when applied.
• Does Versil-Pak 5-2 conform to irregular shapes and surfaces?
Yes, Versil-Pak 5-2 is designed to conform to odd shapes and sizes, making it ideal for nearly any industrial surface, including hard-to-reach welds, threads, straps, yokes, joints, and valves.
• How does Versil-Pak 5-2 protect against external contaminants?
Versil-Pak 5-2 acts as a robust barrier against contaminants, effectively locking out soil, grease, dust, and other detrimental substances.
• Is Versil-Pak 5-2 safe and easy to use?
Yes, Versil-Pak 5-2 is safe and easy to use, requiring no special handling procedures during application.
• What certifications does Versil-Pak 5-2 hold, particularly regarding environmental compliance?
Versil-Pak 5-2 is qualified to U.S. Department of Defense MIL-PRF-121, Type 1, Grade C, Class 2, and is also RoHS compliant, indicating its adherence to environmental standards.
Relevant products you may want to consider:
• Where is Versil-Pak 5-2 typically used in industrial settings?
Versil-Pak 5-2 is ideally used on industrial plant piping in situations where corrosive conditions are prevalent or when conditions are severe.
• Can Versil-Pak 5-2 be used for underground applications?
Absolutely, Versil-Pak 5-2 is ideal for use as a tight wrap on underground piping, pumps, and irregular shapes on oil field machinery.
• What are some specific examples of piping that can be protected by Versil-Pak 5-2?
Versil-Pak 5-2 protects various types of piping, including air lines, sprinkling system piping, cold water pipes, and gas pipes, as well as other metal tubes.
• Beyond piping, what other equipment can benefit from Versil-Pak 5-2's protection?
Versil-Pak 5-2 is also suitable for protecting large electric motors and buried equipment that requires a strong barrier and dielectric protection.
• How does Versil-Pak 5-2 perform in harsh industrial environments?
Versil-Pak 5-2 excels in severe conditions, providing robust protection against corrosion, abrasion, and impact in challenging industrial environments.
Relevant products you may want to consider:
• What are the standard roll sizes available for Versil-Pak 5-2?
Standard rolls of Versil-Pak 5-2 are available in dimensions of 36 inches by 50 yards and 36 inches by 100 yards, with other roll sizes available upon request.
• What are the typical physical properties of Versil-Pak 5-2, such as weight and thickness?
Versil-Pak 5-2 typically has a weight of 0.55 units (200) and a caliper (thickness) of 14.5 units (17.9).
• What is the typical Mullen Burst Strength of Versil-Pak 5-2?
The typical Mullen Burst Strength for Versil-Pak 5-2 is 101 psi (206 kPa).
• What are the Elmendorf Tear Strength and Tensile Strength values for Versil-Pak 5-2?
Versil-Pak 5-2 has an Elmendorf Tear Strength greater than 1600 g/ply (11.8 N/ply) in the cross direction, and a tensile strength of 28.5 lb/in (1.75 kN/m).
• What is the recommended storage for Versil-Pak 5-2 to maintain its shelf life?
To maintain its shelf life, Versil-Pak 5-2 should be stored in a cool, dry place, away from direct sunlight, and not outdoors, in high humidity, or at temperatures exceeding 80 degrees Fahrenheit (27 degrees Celsius).
Relevant products you may want to consider:
• What is the shelf life of Versil-Pak 5-2?
When stored correctly in its original shipping container by Daubert Cromwell, Versil-Pak 5-2 has a shelf life of 5 years from the date of shipping.
• How does the flexibility of Versil-Pak 5-2 assist in its application?
The flexibility of Versil-Pak 5-2 ensures ease of handling and allows it to conform to various industrial surfaces and shapes, making application straightforward.
• Are there any special handling requirements when applying Versil-Pak 5-2?
No, Versil-Pak 5-2 is designed to be safe and easy to use, and no special handling is required for its application.
• What is the benefit of the high adhesion wax for sealing applications?
The high adhesion wax on both sides of Versil-Pak 5-2 provides a tight overlap seal, which is crucial for effective barrier protection.
• Can Versil-Pak 5-2 be easily applied to complex structures like welds and threads?
Yes, its moldability allows Versil-Pak 5-2 to conform to nearly any industrial surface, including complex structures like hard-to-reach welds and threads.
Relevant products you may want to consider:
• Who distributes Versil-Pak 5-2 in the UK?
Versil-Pak 5-2 is distributed in the UK by Valdamark Limited, located at Unit 13, 30 The Downs, Altrincham, Cheshire, WP14 2PX, United Kingdom.
• How can I contact Valdamark Limited for inquiries about Versil-Pak 5-2?
You can contact Valdamark Limited via email at valdamark@live.com or by phone at +44 (0) 161 706 0388.
• Are the physical properties listed for Versil-Pak 5-2 guaranteed specifications?
The physical properties shown for Versil-Pak 5-2 represent typical values and are not intended for use in writing specifications, as the product's performance can vary under different conditions.
• Is it recommended to test Versil-Pak 5-2 before full implementation?
Yes, users are advised to test Versil-Pak 5-2 in advance to ensure it is suitable for their specific production conditions and intended use.
• What is the warranty provided by Daubert Cromwell for Versil-Pak 5-2?
All products manufactured by Daubert Cromwell are warranted to be first-class material and free from defects in material and workmanship.
