Daubert Cromwell Versil Pak 5-1

Daubert Cromwell Versil Pak 5-1

Stock TBD

  • International Delivery
  • Bulk Buying Discounts
  • Best-in-Class Products

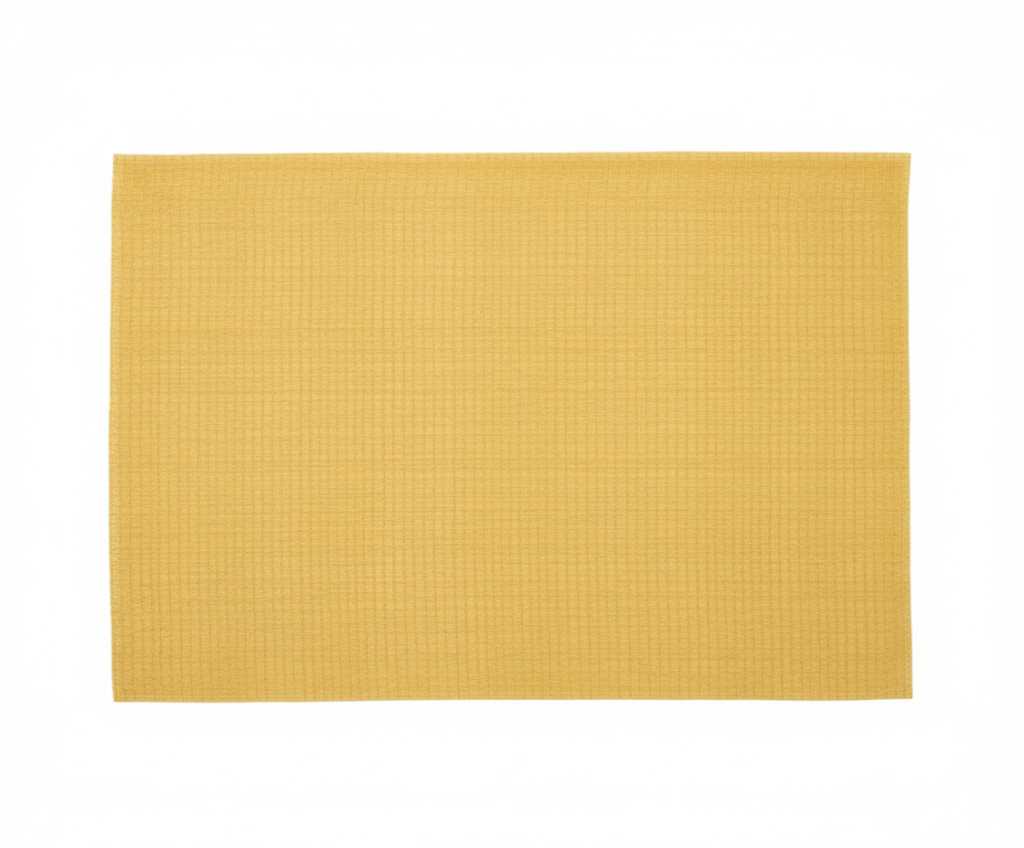

vcVersil-Pak 5-1 is a robust and flexible barrier material designed for superior protection against corrosion, abrasion, and impact.

It's essentially a high-strength polyester fabric that's been waxed on one side and then laminated to a barrier film, with an additional wax coating. This unique construction makes it highly durable and easy to handle.

One of its key features is its ability to conform to unusual shapes and sizes, including hard-to-reach areas like welds, threads, straps, yokes, joints, and valves. This makes it ideal for a variety of industrial applications, particularly in severe corrosive environments. Versil-Pak 5-1 acts as a barrier against contaminants like soil, grease, and dust , and its two-sided adhesion wax ensures a tight overlap seal. It's also safe and easy to use, requiring no special handling.

This material is widely used for protecting industrial plant piping, including air lines, sprinkling systems, cold water pipes, and gas pipes. It's also excellent for tightly wrapping underground piping, pumps, irregular shapes on oil field machinery, large electric motors, and buried equipment that needs strong barrier and dielectric protection. Versil-Pak 5-1 is qualified to U.S. Department of Defense specification MIL-PRF 121, Type 1, Grade C, Class 1, and is RoHS compliant.

Specifications:

  • Weight: 0.45 lb/sq. Yd. (200 g/m²)
  • Caliper (thickness): 14 mil (17.9 µm)
  • Mullen Burst Strength: 98 psi (206 kPa)
  • Elmendorf Tear Strength:
    • Machine Direction: >1600 g/ply (7.8 N/ply)
    • Cross Direction: >1600 g/ply (11.8 N/ply)
  • Tensile Strength:
    • Machine Direction: 26 lb/in (1.75 kN/m)
    • Cross Direction: 21.5 lb/in (0.87 kN/m)
  • Adhesion:
    • Lbs: 21
    • 15
  • Standard Roll Sizes: 36" x 50 yds. and 36" x 100 yds. (Other sizes available upon request)
  • Approvals: RoHS, OEM Approved, MIL-PRF-121
  • Storage: Store in a cool, dry place, away from direct sunlight. Do not store outdoors, in high humidity, or at temperatures above 80°F (27°C).
  • Shelf Life: 5 years from date of shipping, when stored in the original shipping container used by Daubert Cromwell, not in high humidity or high temperatures, and not stored outside.

Product Specifications (.PDF)





Frequently Asked Questions

• What defines Versil-Pak 5-1 as a barrier material, and how does it achieve its protective qualities?

Versil-Pak 5-1 is a flexible, greaseproof, and waterproof barrier material from Daubert Cromwell. It's constructed with a polyester high-strength fabric, waxed on one side, then laminated to a barrier film, and finished with a wax coating, all contributing to its robust protective properties.

• How does the unique composition of Versil-Pak 5-1 enhance its durability and ease of use?

The strong, durable protective packaging material of Versil-Pak 5-1 gets its barrier properties from its polyester high-strength fabric, which adds strength and ensures ease of handling during application.

• Is Versil-Pak 5-1 suitable for specialized applications like military use or protecting buried pipes?

Yes, Versil-Pak 5-1 is particularly well-suited for wrapping buried pipes and is also used in government/military applications where corrosive conditions are severe.

• What types of protection does Versil-Pak 5-1 offer against environmental damage?

Versil-Pak 5-1 provides comprehensive corrosion, abrasion, and impact protection, all while being flexible, greaseproof, and waterproof.

• What is the primary role of the polyester high-strength fabric core in Versil-Pak 5-1?

The polyester high-strength fabric core in Versil-Pak 5-1 provides high strength and serves as a carrier for the protective wax.

• How does the high-adhesion wax contribute to the effectiveness of Versil-Pak 5-1?

The high-adhesion wax ensures an excellent barrier and creates a tight overlap seal when applied.

• Does Versil-Pak 5-1 offer enhanced barrier properties due to its film component?

Yes, the polyester film integrated into Versil-Pak 5-1 significantly increases its barrier properties compared to materials without such a film.

• Can Versil-Pak 5-1 conform to irregular or complex shapes?

Absolutely, Versil-Pak 5-1 is designed to conform to odd shapes and sizes, making it ideal for nearly any industrial surface, including hard-to-reach welds and threads, straps, yokes, joints, and valves.

• What makes Versil-Pak 5-1 a good choice for preventing contamination?

Versil-Pak 5-1 acts as an effective barrier to contaminants, locking out soil, grease, dust, and other unwanted substances.

• Is Versil-Pak 5-1 considered safe and user-friendly for industrial applications?

Yes, Versil-Pak 5-1 is safe and easy to use, requiring no special handling procedures during application.

• Where is Versil-Pak 5-1 most commonly used in industrial settings?

Versil-Pak 5-1 is typically used to protect industrial plant piping where corrosive action is prevalent or where conditions are severe.

• Can Versil-Pak 5-1 be applied to underground structures?

Yes, it is ideal for use as a tight wrap on underground piping, pumps, and irregular shapes on oil field machinery.

• What specific types of piping can Versil-Pak 5-1 effectively protect?

Versil-Pak 5-1 protects various types of piping, including air lines, sprinkling system piping, cold water pipes, and gas pipes, as well as other metal tubes.

• Are there other significant pieces of equipment that can benefit from Versil-Pak 5-1's protective qualities?

Besides piping, Versil-Pak 5-1 is also effective for protecting large electric motors and buried equipment that needs strong barrier and dielectric protection.

• How does Versil-Pak 5-1 address the challenges of severe corrosive conditions?

Versil-Pak 5-1 provides robust corrosion, abrasion, and impact protection, making it highly effective in severe corrosive environments.

Relevant products you may want to consider:

• What are the standard roll sizes for Versil-Pak 5-1?

Standard rolls of Versil-Pak 5-1 are available in dimensions of 36 inches by 50 yards and 36 inches by 100 yards, with other roll sizes available upon request.

• What are the typical weight and thickness measurements for Versil-Pak 5-1?

Versil-Pak 5-1 typically has a weight of 0.45 lb/sq. Yd. (200 g/m²) and a caliper (thickness) of 14 mil (17.9 µm).

• What is the typical Mullen Burst Strength of Versil-Pak 5-1?

The typical Mullen Burst Strength for Versil-Pak 5-1 is 98 psi (206 kPa).

• Can you provide the typical Elmendorf Tear Strength and Tensile Strength values for Versil-Pak 5-1?

Versil-Pak 5-1 exhibits an Elmendorf Tear Strength greater than 1600 g/ply (7.8 N/ply) in the machine direction and greater than 1600 g/ply (11.8 N/ply) in the cross direction. Its tensile strength is 26 lb/in (1.75 kN/m) in the machine direction and 21.5 lb/in (0.87 kN/m) in the cross direction.

• What is the recommended storage environment to maximize the shelf life of Versil-Pak 5-1?

To ensure its shelf life, Versil-Pak 5-1 should be stored in a cool, dry place, away from direct sunlight, and not outdoors, in high humidity, or at temperatures above 80°F (27°C).

• What is the estimated shelf life of Versil-Pak 5-1 under proper storage conditions?

Versil-Pak 5-1 has a shelf life of 5 years from the date of shipping when stored in its original shipping container by Daubert Cromwell, avoiding high humidity and high temperatures, or outdoor storage.

• What industry approvals does Versil-Pak 5-1 hold?

Versil-Pak 5-1 is RoHS compliant, OEM Approved, and qualified to U.S. Department of Defense MIL-PRF 121, Type 1, Grade C, Class 1 & 2.

• Who is the authorized distributor of Versil-Pak 5-1 in the United Kingdom?

Valdamark Limited, located at Unit 13, 30 The Downs, Altrincham, Cheshire, WP14 2PX, United Kingdom, is the authorized distributor for Versil-Pak 5-1.

• How can potential customers reach Valdamark Limited for product inquiries?

You can contact Valdamark Limited via email at info@valdamark.com or by phone.

• Are the physical properties listed in the data sheet guaranteed specifications for Versil-Pak 5-1?

The physical properties provided are typical values and are not intended for use in writing specifications, as the product's performance can vary under different conditions.

Relevant products you may want to consider:

• Is it advisable to test Versil-Pak 5-1 for specific applications before widespread use?

Yes, users are strongly advised to test the product in advance to confirm its suitability for their particular production conditions and intended use.

• What is the extent of the warranty provided by Daubert Cromwell for Versil-Pak 5-1?

All products manufactured by Daubert Cromwell are warranted to be first-class material and free from defects in material and workmanship.

• What is the limitation of liability under the warranty for Versil-Pak 5-1?

Liability under the warranty is limited to the net purchase price of any proven defective products, or, at Daubert Cromwell's option, to the repair or replacement of said products upon their return with transportation prepaid.

• What is the timeframe for making claims on defective Versil-Pak 5-1 products?

All claims for defective products must be made in writing within 30 days after the receipt of such products at your plant and prior to any further processing or combining with other materials and products.

• Does Daubert Cromwell offer any implied warranties regarding the suitability of Versil-Pak 5-1 for specific uses?

No, Daubert Cromwell makes no warranty, express or implied, as to the suitability of any of its products for any particular use, and will not be liable for damages resulting from their use in operations not under their direct control.
