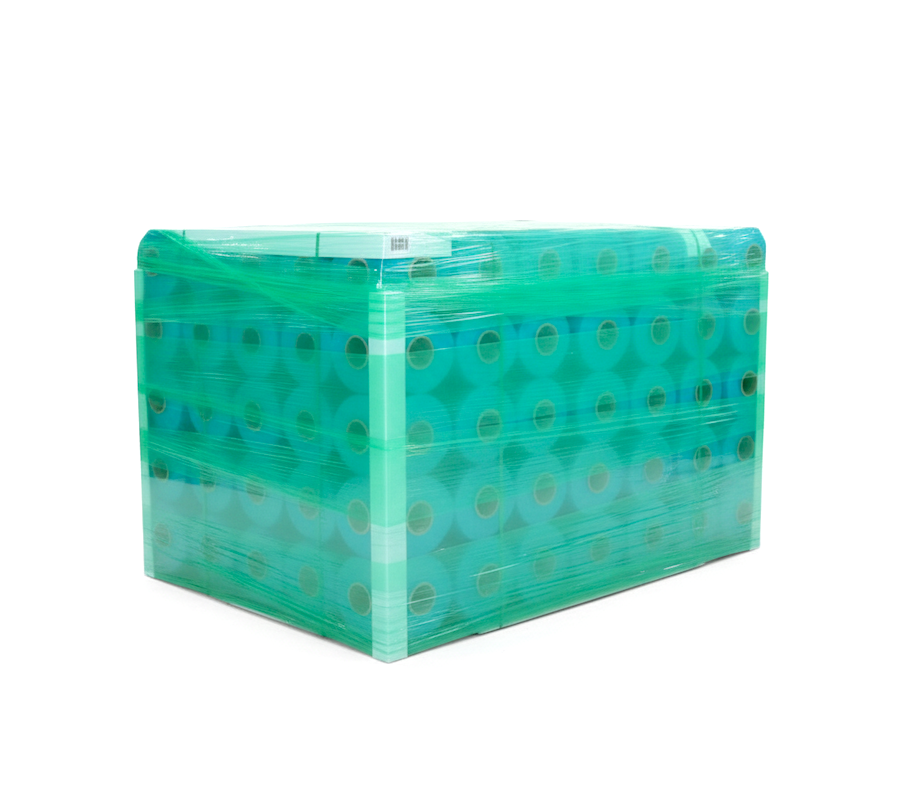

Cortec EcoSonic® ESD Stretch Film powered by Nano VpCI®

Cortec EcoSonic® ESD Stretch Film powered by Nano VpCI®

Call for quote

£0.00 GBP
£0.00 GBP
Limited Offer Call for quote

EcoSonic® ESD Stretch Film is high performance that contains inhibitors for multi-metal corrosion and protection against ESD.

Plastic film's limited electrical conductivity necessitates additional precautions in packaging applications where static discharges are prohibited. During stretch-wrapping applications, pressure and friction cause static discharges. These can be fairly large and cannot be dissipated through grounding.

Cortec® Laboratories created this specialist film for electronics, munitions, fertilisers, and other industrial applications where static discharge could cause hazardous packaging conditions.

  • It passes NACE TM0208-2018 corrosion protection standards.
  • It meets the anti-static criteria outlined in MIL-PRF-81705 E.

Available packaging width options are 20” (50 cm), 18” (45.75 cm), 15” (38 cm), and 12” (30.5 cm). The thickness may vary between 1.0 mil (25 µm) and 1.5 mil (38 µm). All options can be customised based on your specific needs.

Contact Customer service in Cortec® for lead times and custom requirements.

To ensure best product performance, store in original packaging, indoors, and out of direct sunlight at 40-100 °F (4-38 °C).

Shelf life: 1 year

Features

  • Eliminates static charges.
  • Vapour phase corrosion inhibitor technology.
  • Stretch film in Excellent performance.
  • Suitable for severe situations.
  • Transparent packaging
  • LLDPE #2 plastic.
  • Economical solution.
  • Non-hazardous.
  • Offers multi-functional protection.

Benefits

  • Passes static decay standards per MIL-PRF-81705 E.
  • Offers prevention of different metal corrosion
  • Eliminates stretch film instability.
  • Removes costly protective packaging.
  • Fully recyclable in appropriate institutions.
  • Safe to use & apply.
  • Non-interference with surface qualities (electrical, mechanical, optical).

Metals Protected

  • Aluminum.
  • Carbon Steel.
  • Copper.
  • Silicon Steel.
  • Brass.
  • Galvanised Steel.
  • Stainless steel.
  • Cast Iron.

Performance

ESD properties conform to MIL-PRF-81705 E:

  • Surface resistivity between 105 and 1012 Ω.
  • Static decay rate <2 sec.

Technical Properties


Property



Test Method

Units

Typical Values*

Caliper

ASTM D6988

mil (µm)

1.50

(38)



Breaking Factor

MD



ASTM D882-02



lbs/in (N/m)

5.92

(1030)

CD

4.41

(769)



Tensile Strength at Break

MD



ASTM D882-02



psi (kPa)

3893

(26840)

CD

3535

(24370)

Elongation at Break

MD

ASTM D882 -02

%

553.73

CD

632.37



Yield Strength

MD



ASTM D882 -02



psi (kPa)

1817.40

(12531)

CD

1163.96

(8022.22)

Tear Strength

MD

ASTM D1922-06a

mN

4432

CD

4393

Dart Drop Impact Resistance

ASTM D1709 -04

Test Method A

grams

458.20



Puncture Resistance

Outside



MIL-STD -3010, TM 2065



lbf (N)

3.20

(14.2)

Inside

5.20

(23.1)

*Typical values represent average laboratory values and are intended as guides only, not as specifications.

Applications for Stretch Film

EcoSonic® ESD Stretch Film is compatible with both manual and automatic stretch wrapping equipment (hand wrapping is recommended for 12" [30.5 cm] and 15" [38 cm] widths). It is perfect for packing and unitising loads in any application requiring the absence of electrical shock, such as the following:

  • Telecommunications equipment and Computers.
  • Electrical components and panels.
  • Laboratory instruments.
  • Marine, military, and aerospace instruments.
  • Medical machines prone to electrical interference.
  • Munitions.
  • Volatile items in controlled environments.
  • Loads of finished explosives & gun powders.
  • Loads with nitrites and nitrates in fertiliser plants.



Product Specifications (.PDF)
