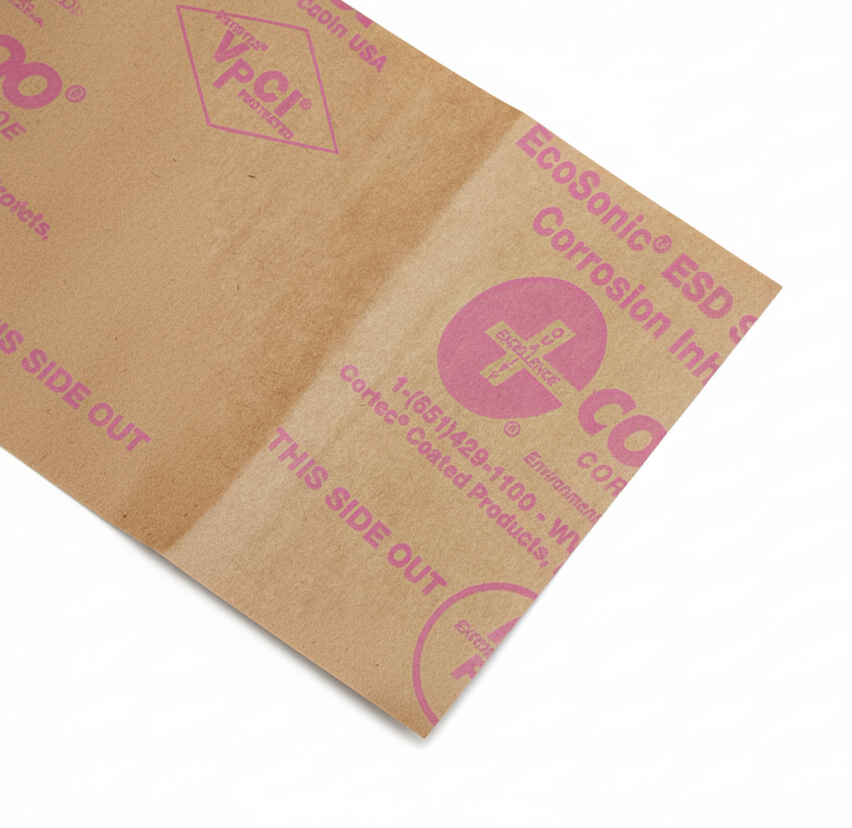

Cortec EcoSonic® ESD Paper powered by Nano-VpCI

Cortec® EcoSonic® ESD Paper blends the qualities of corrosion inhibitor and static dissipation to create an effective wrapping paper for your valued components.

This solution prevents static electricity buildup by applying an environmentally friendly coating made of soybean oil to the paper's surface.

EcoSonic® ESD Paper outperforms papers with conventional anti-stat coatings such as typical ethoxylated amines, Alkyl Ammonium Chlorides, phosphate esters, typical imidazolines, and nonionic-based antistat coatings.

This performance was proven in the static half-life test, which was conducted in a low-humidity environment. EcoSonic® ESD Paper provides antistat protection that is thermally stable up to 392ºF (200ºC) and pH stable for several days at temperatures above 100ºF (38ºC).

EcoSonic® ESD Paper will also limit the corrosion of nonferrous and ferrous and through barrier, vapor, and contact phases. Simply cover your fragile electrical metal parts in EcoSonic® ESD Paper, and your valued products will be safe from electrical static buildup and corrosion. EcoSonic® ESD Paper is completely repulpable, biodegradable, recyclable, and non-toxic, with no silicates, phosphates, nitrates, or other dangerous substances.

Made from high-quality natural kraft paper free of chlorine and other bleaching agents.

This reduces the need to maintain packaged systems. Simply wrap your products in the paper and fold the edges together. Use sealing tape as needed to keep paper flaps in place. You can paint, solder, or weld parts covered with EcoSonic® ESD Paper. EcoSonic® ESD Paper does not affect the physical attributes, resistance, and conductivity of the most vulnerable electrical parts. Contamination was discovered with various competing corrosion-inhibiting materials. EcoSonic® ESD Paper is easy to use. There are no chemical concentrations to compute, no chemical tanks, or application systems to maintain.

Features

• One item suitable for non-ferrous and ferrous metals.
• Meets Performance Specifications for inhibiting corrosion through vapour phase (MIL-PRF-3420G) and surface resistivity/static decay rate (MIL-PRF-81705D).
• Offers corrosion inhibition, electrostatic discharge protection, and packing in a single product.
• Antistat characteristics on pH independence and temperature.
• Zero phosphates, silicates, nitrites, chromates, heavy metals, or toxic components, thus, not toxic.
• 100% reusable, recyclable.
• Protects against harsh environments such as SO2, dampness, H2S, and reactive rusting brought by dissimilar metals.

Typical Application

You can use EcoSonic® ESD Paper to safeguard any material prone to damage brought by electrostatic discharge. These materials include integrated circuits, printed circuit boards, telecommunications equipment, PCB components, electrical panels, batteries, electrical enclosures, and other materials with multi-metal and electrical parts.

Metals Protected

• Brass (≤30% Zn).
• Carbon Steel.
• Copper.
• Stainless Steel.
• Cast Iron.
• Galvanised Steel.
• Solder.
• Aluminum Alloys.

Performance

ESD Properties conforms to MIL PRF-81705 D.

• Surface Resistivity (ASTM B 257). Between 1 x 105 and 1012 Ω/sq.
• Static Decay Rate (Method 3046, Federal Std. 101C). Less than 2 seconds.

Corrosion Inhibiting Properties conform to:

• MIL-PRF-3420G (vapor inhibiting ability)

Methods of application

Wrap your products after cleaning and thoroughly drying. Make sure the products are free of moisture or water droplets. Keep the ESD Paper as close to the item as possible. There should be no gap between the paper and the metal surface.

Use around one square foot (0.09 m2) of VpCI® paper for every three-square feet (0.28 m2) of metal surface, and one square foot (0.09 m2) for every 0.5 cubic foot (0.01 m3) of vacant area. For up to ten years of storage, place the wrapped item inside a sealed box.

Standard Construction

Neutral natural kraft paper treated with VpCI® and static dissipative substance. The paper has a printed logo on the reverse side of the coating.

Typical Properties

CD- Cross Direction MD- Machine Direction

 Standard Test Methods

Packaging & Storage

You can request for construction and customised sizes.

Product Specifications (.PDF)
