What Heat Sealer? A complete guide to heat sealers and their many uses.

A heat sealer machine (or bag sealer) is a device used to seal various types of packaging and thermoplastic materials. There are different designs for different sealing requirements.

When choosing a heat sealer, the first and most obvious question to ask is what are you trying to seal?

Bag heat sealers are used to seal a wide variety of materials to suit many different applications and projects.

Heat seal bags are hermetically sealed ensuring that your products are tamper proof, airtight, waterproof and hygienically enclosed.

Often you will have a standard bag or pouch that could contain identical mono layers. So you would need to seal just two layers of material.

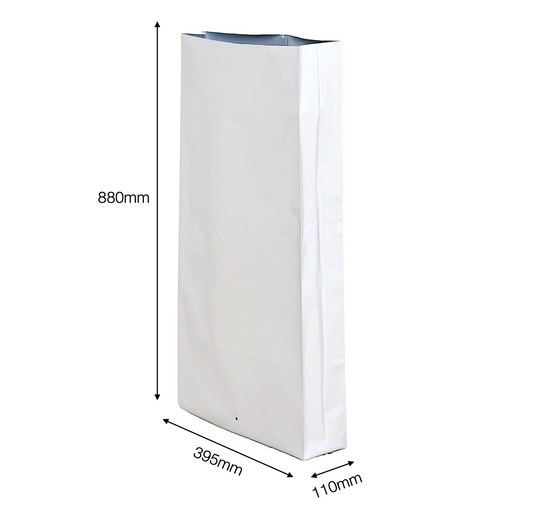

Other packaging like foil bags, coffee bags or gusset pouches may have several layers that need to be sealed at once. So, your sealer will need to be suitable for this.

Which material will you be sealing ?

Many sealers can seal different types of materials, but it is important remember that some are not suitable for certain materials and different thicknesses.

Polyethylene including HDPE, LLDPE and PE

PVC

Polyethylene Terephthalate or PT

Aluminium Foils

Metalized Polyester

Cellulose or Barrier Foils.

What size sealer will you need ?

Sealer blades ( or jaws ) have different widths to suit the width of the seal you want to create. As a rule, choose a sealer that is between 20mm and 50mm wider than the width of your packaging.

This just gives you more maneuverability as the packaging can easily be positioned without overlapping the edges of the machine.

Our Heat sealing machines

Two types of heat ! Impulse Sealer and Constant Sealer

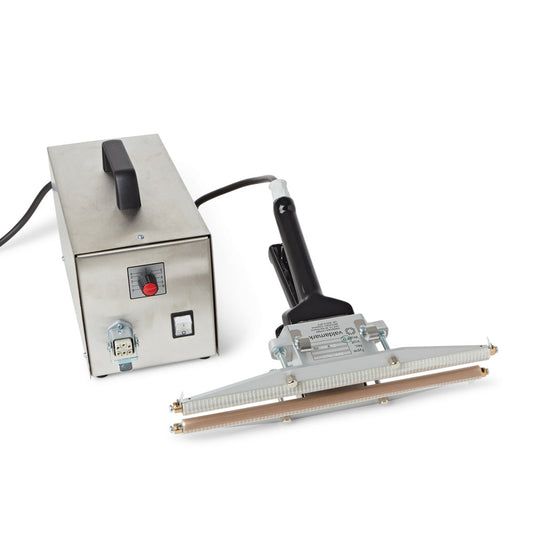

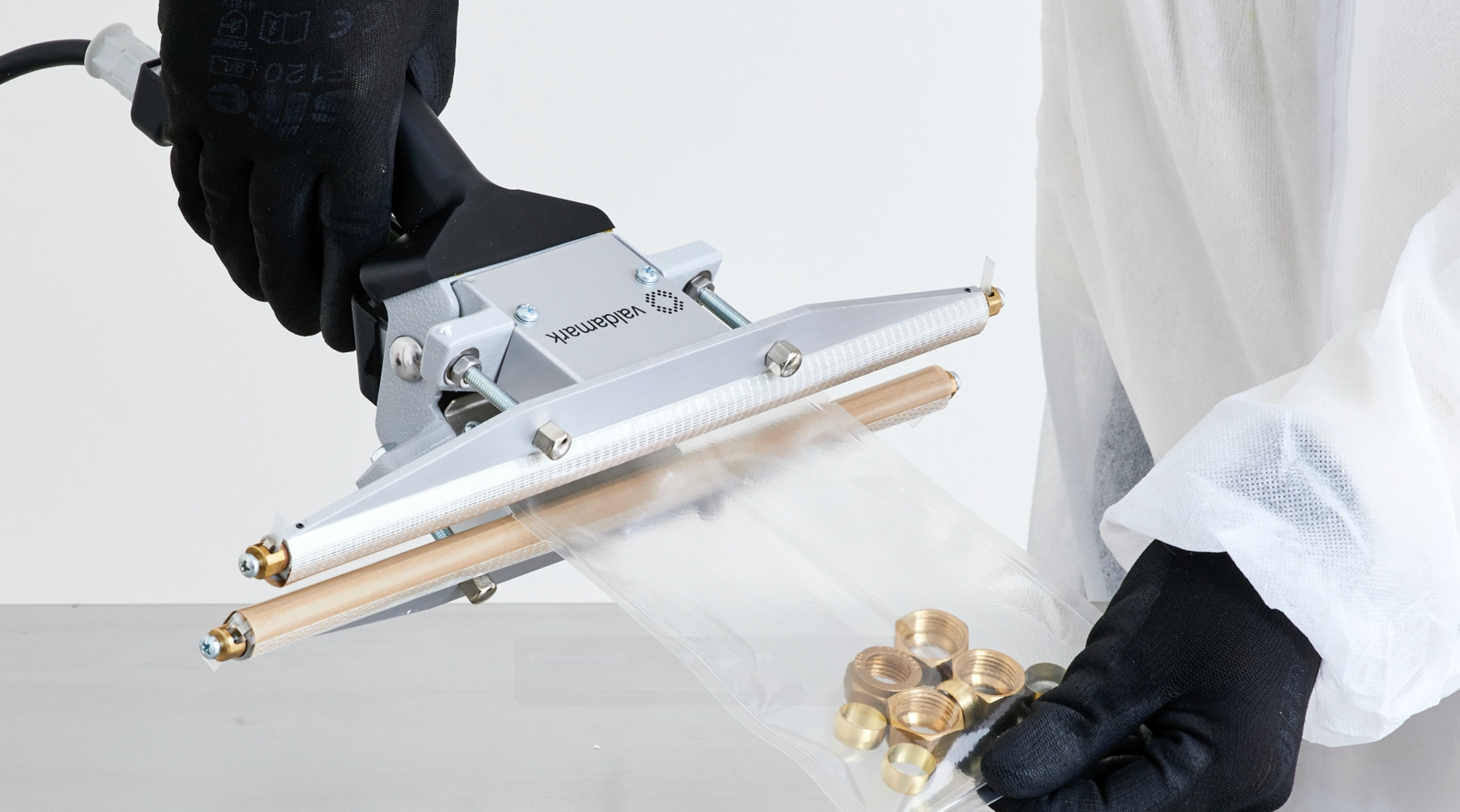

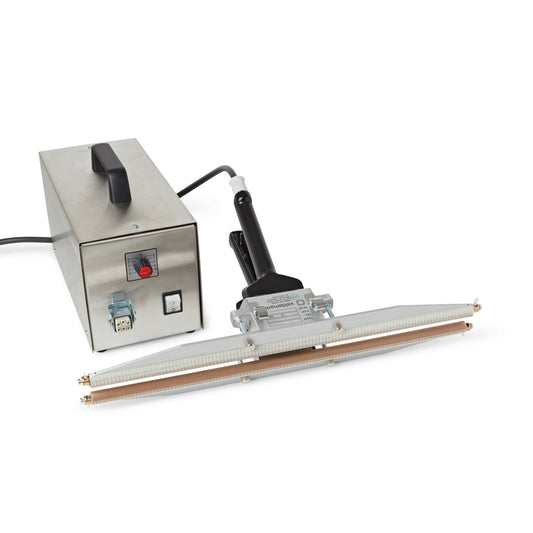

Impulse heat sealer

Impulse heat sealer machines deliver heat in an impulse (or short interval).

They use a low voltage heating containing wires that have virtually no heat up time. This allows you to get up to your desired temperature and seal in seconds.

The heating element then cools down but retains the pressure allowing the seal to set.

This makes them economical to run as from a power perspective the power is only used during the actual sealing process.

Usually these devices are used on packaging that contains identical thermos-plastic films on all seal sides. This is usually a polythene material but not necessarily as they can be used for thinner gauge laminate materials.

Standard Impulse Sealers will suit most projects, being able to easily handle polythene films up to 600 gauge or 150 microns.

The Audion Sealboy is our most popular unit here. It’s fixed unit available in a variety of different sizes with or without a cutter.

There are devices available for heavier gauge or multi layered polythene. As well as this other material constructions like Nylon, Polypropylene, Polyurethane and PVC can be suitable for an impulse sealer but we would advise a trial first.

All our impulse sealers have built in electronic timers so you can accurately control the sealing cycle.

Some models go further with the addition of a specification timer that indicates the seal cooling period. This feature allows you to maintain the quality and consistency of seals even more accurately.

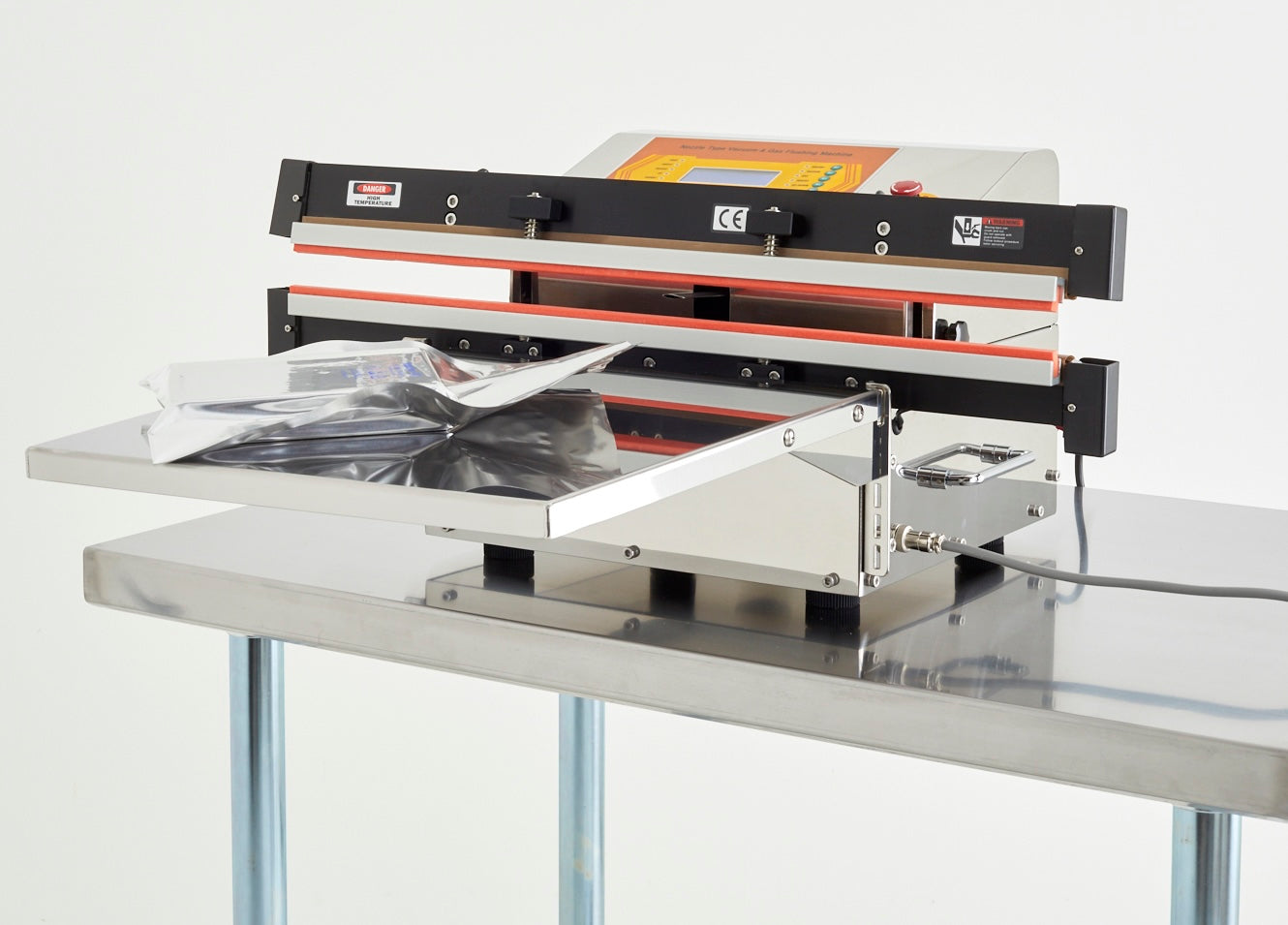

Constant Heat Sealers

Constant heat bag sealers are usually used for laminated materials made up of multiple layers of thermoplastic film.

These can have different mechanical properties and melting points depending on the construction.

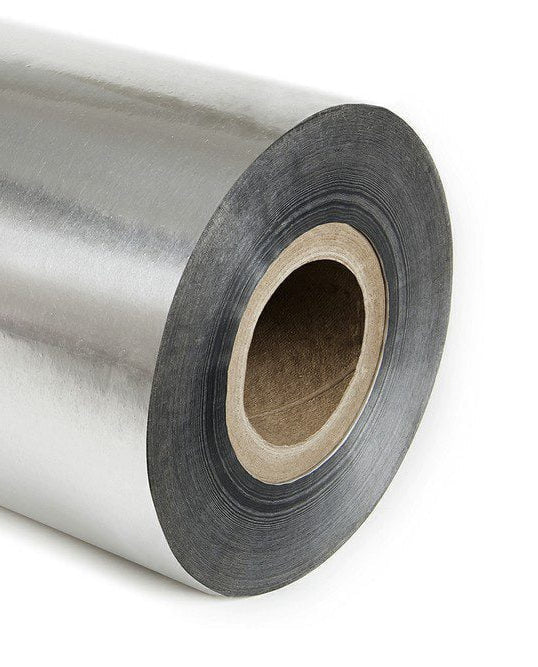

Barrier Foils, coated papers, cellulose films, cellophane and polypropylene films will often require a constant seal.

Our devices all have temperature controllers to keep the seal bars at the desired and precise temperature.

With constant sealing the inner layer is sealed without any defect to the backing material.

To crimp or not to crimp? The crimp sealer question.

The word crimp refers to the seal pattern on some bag machines. Its primarily there to improve seal strength and avoid de lamination of any multi layered materials.

Many people refer to this as the crisp bag sealer. Or the plastic bag crimper.

It’s the clients personal preference to have this or not.

The Audion Futura Cello 150C model is our most popular device.

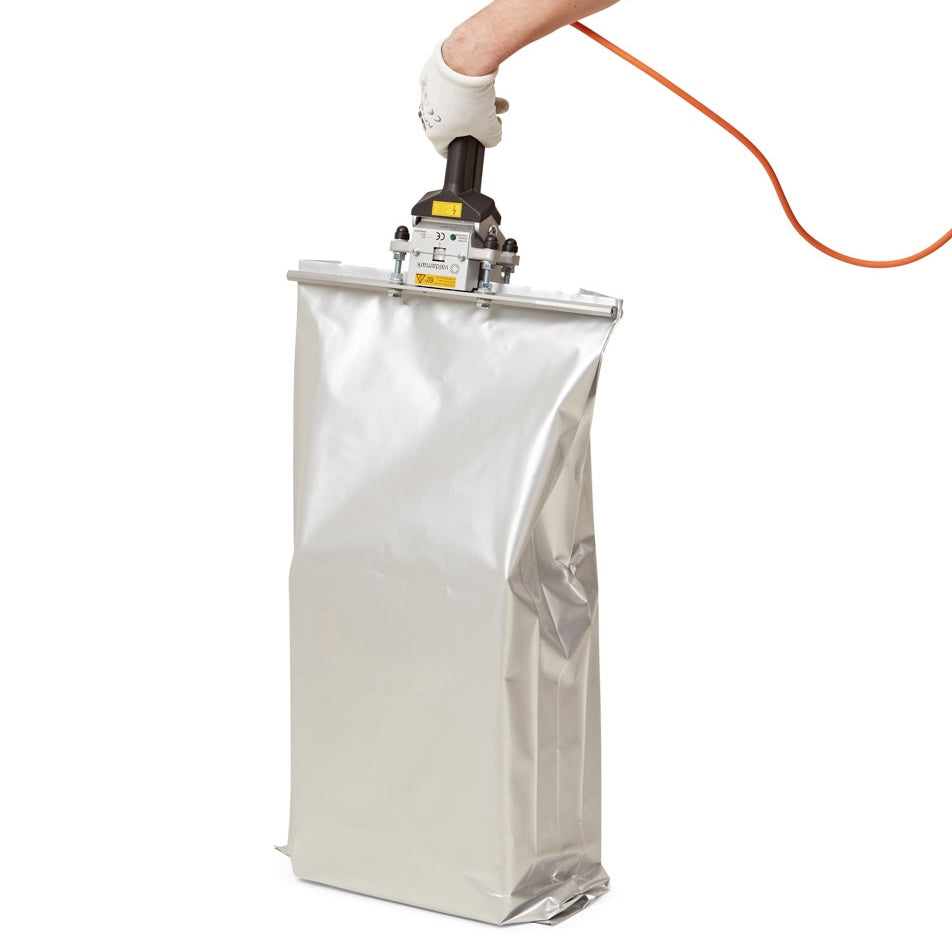

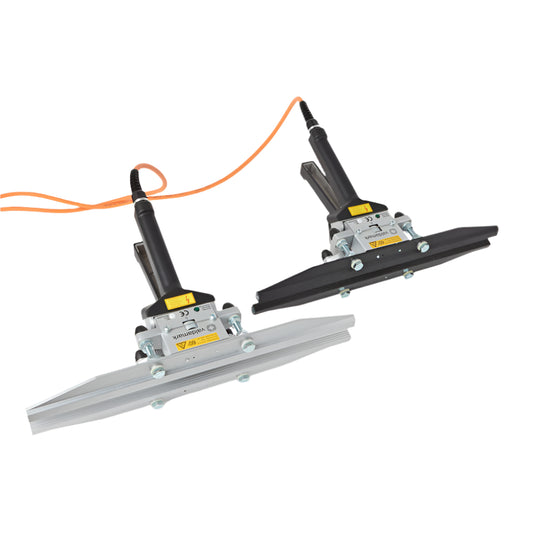

This Hand held crimper sealer features two serrated jaws and is suitable for cellophane, waxed papers, barrier foils and other metallized or aluminium laminates.

Do I need a heat sealer with cutter or without ?

Heat sealers with cutter knives are for those who wish to make their own custom sized bags.

Often with lay flat tubing or another polythene material. Here you just measure the material to size and cut off any excess by closing the jaw and sliding the easy to use cutter blade.

Our most popular model here is the Audion Sealkid Heat Sealer 200mm

Which are the best Heat sealers for plastic bags ?

As above it will depend on the material of your packaging, the environment and the volume of sealing you need to do.

If we were to look at both budget and premium options for portable and fixed sealers we would recommend.

We use this ethos to provide an optimum product packaging service and ensure standards are always kept high. This is what our clients are continuously expecting during all parts of the ordering process, – and this is what we deliver upon.

Valdamark can advise on your heat sealer requirements. Get in touch or send us a sample for review.

Ask about our wide range or accessories to improve the performance and ergonomics of your chosen heat sealer.

We provide a safe and secure e-commerce platform for ordering at your convenience

Get in Touch

Call +441618186418 for more information

About Valdamark – Product Packaging for all

heat sealerFounded in 1977 Valdamark started primarily as a specialist tapes and adhesives converter.
Our reputation for client commitment grew through an appreciation of product quality and over time we expanded our time critical delivery service to cater for a large range of consumables from premium brands.

Our bespoke sourcing and manufacturing service has since gathered much momentum allowing clients the ultimate flexibility.

At Valdamark Direct we have a firm commitment to delivering market leading product packaging products whilst meeting our clients expectations in every way we can.

Our philosophy is that no two clients are the same and clients can be assured by our ‘quality centric’ approach to products, which ensures standards are kept high.

Distribution Partners & Market Leading Brands

Valdamark Direct provide you with the market expertise. As well as the best products and prices.  In addition to our own capabilities. We have forged strong relationships manufacturing partners across the globe.

We only supply the premium quality that your projects deserve. These products are often ‘best in class’ varieties including anything from heat sealers and packaging to thermometers and corrosion inhibitors.

shockwatch
Founded in 1975 as the Shockwatch brand the company developed the world renowned Shockwatch Labels for monitoring the handling and transportation of sensitive computer equipment.

Shockwatch™ shipping solutions allow you to take control of your goods in transit. Focusing on preventing mishandling throughout the transportation and storage processes Shockwatch products focus on maintaining a client’s reputation for quality and reliability.

cooper atkins
Every Cooper product demonstrates ‘best in class’ performance qualities often using sophisticated technology for which the Cooper Atkins brand has become synonymous with.

Today’s range includes an extensive choice of temperature measurement devices that all come with the renowned ‘accurate for life’ guarantee saving clients time and money by avoiding costly off-site calibrations.

corrosionx
Formerly known as the Corrosion Technologies Corporation this Dallas based company manufactures a world beating range of anti-corrosion products used in a huge variety of industrial and domestic applications.

Incorporating the latest innovations including polar bonding technology and fluid thin film coating products like Corrosion X™, Rejex™, Reelex ™and Speedex™ continue to outperform the competition for all corrosion treatment and removal applications.

audion
Since 1974 Audion Electro have endeavored to provide a complete range of the world’s finest packaging machinery and equipment.

They have has worked extensively with partners to produce a range of innovative ‘client centric’ solutions, including both standard and bespoke models such as heat sealers, vacuum packaging and shrink wrapping, all suitable for use with Audion machinery and packaging materials.

hawo
Hawo® were established in 1975 and are considered a world leader in packaging machine systems and technology. Innovation and quality are at the core of the business with products conforming to the requirements of a number of international standards including EN ISO 11607-2, EN 868, DIN 58953.

Hawo themselves are certified in accordance with IS0 9001:2008 with all machinery carrying the CE sign as standard.

multisorb technologies

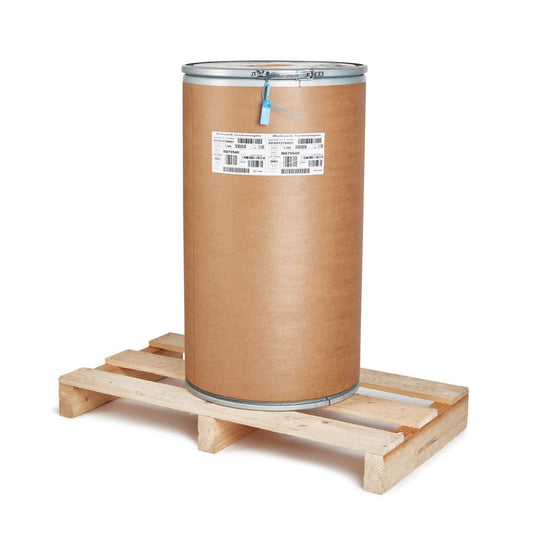

Multisorb Technologies have been manufacturers and innovators in moisture control and sorbent technology for over 50 years.

Initially focussing around the electronics market to protect sensitive electronics from moisture damage they have grown to provide superior packaging technology for protection against an array of environmental culprits including odour, gas and oxygen damage.

daubert cromwell

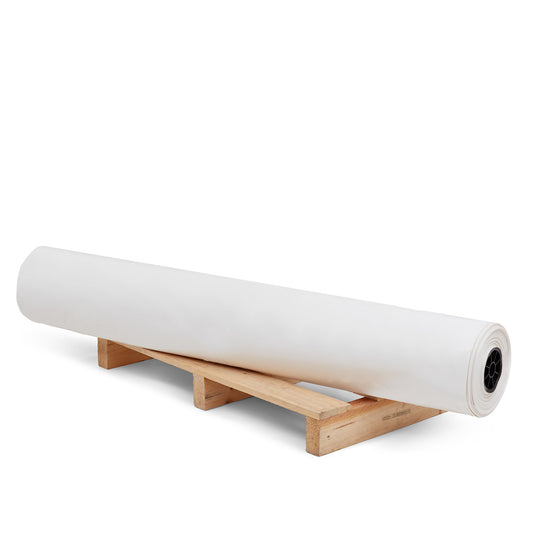

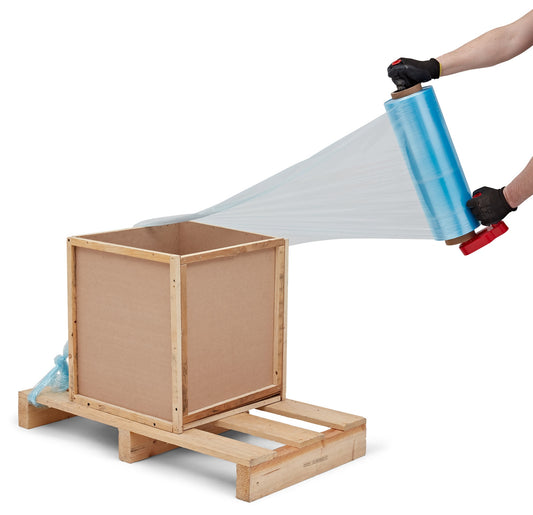

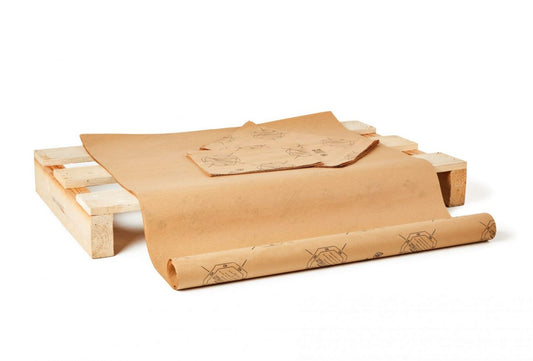

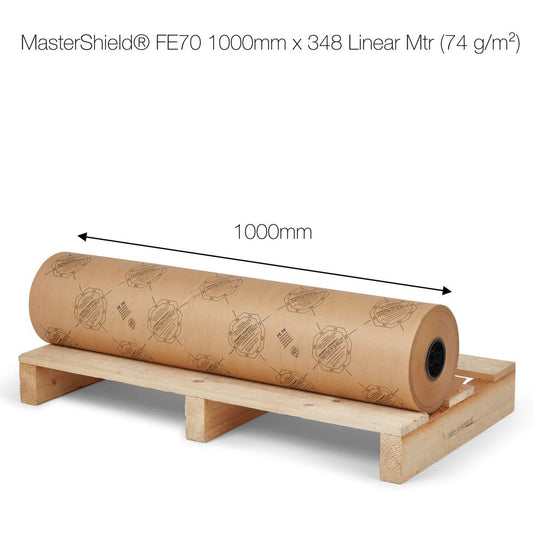

Daubert Cromwell have been trusted manufacturers of VCI and corrosion prevention products for over 75 years, including a market leading range of VCI Bags and rust protection films have earned it a reputation as the market leader in the corrosion protection field.
